40 EA COTTAGE | Water Heater

£2,036.52 Excl. VAT

If you wish to check that this item is in stock then please call us on 01663 734800.
SKU: 40EA Category:
Description

Wallas 40 EA is a water heating system for off-grid cottages that can be used solely as a hot water heater for domestic water or it can also power up underfloor heating and radiators. Underfloor water heating system is an excellent alternative to air heating as it disperses dry heat evenly in the space and provides an added luxury of having comfortably warm floors to walk on. When heat transfer fluid is run underneath the flooring, there is no air blowing in the space, which can also be a relief to some, if allergies are a concern.

Energy-efficient Wallas diesel cottage heater requires only about 0,2-04 amps, which is why a small solar panel is sufficient to recharge the 12 V battery. Fuel consumption is also so low, that a 33 liter (6 gal.) fuel tank will keep the heater running for almost six days. Wallas particularly recommends the Neste MY Renewable Dieselâ„¢, which is high-performing low carbon biofuel.

The modern design of Wallas 40 EA is both functional and beautiful, and comes in two color options: graphite gray and winter white, which match any decor. The unit and fuel tank can also be installed in a utility room away from the eyes. 40 EA cottage heater is widely used in the Nordic Countries and it has been found to be an excellent heating option for cool summer evenings as well as freezing cold winter nights. You can transform your off-grid cottage into a perfect resting spot, where you can relax with family and friends year-round.

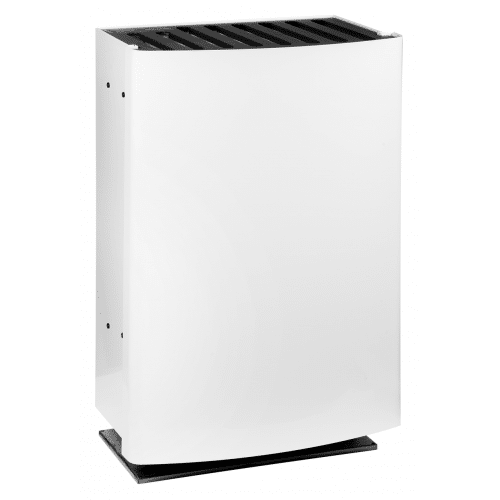

26CC WH heater

Advanced Control Panel

If 40 EA is used solely as a domestic water tank heater, the only function needed is ON or OFF.

If a second water pump is installed for floor heating, the control panel allows you to set a target room temperature and the thermostat maintains a smooth ambient temperature in the space.

The simple display shows all the pertinent information at one glance.

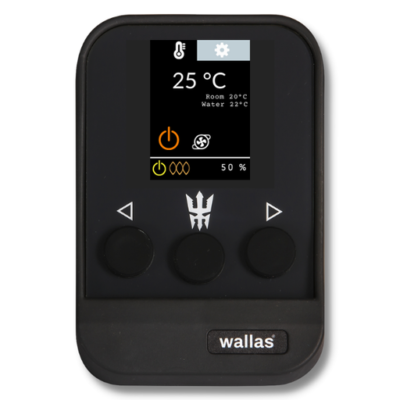

40ea control

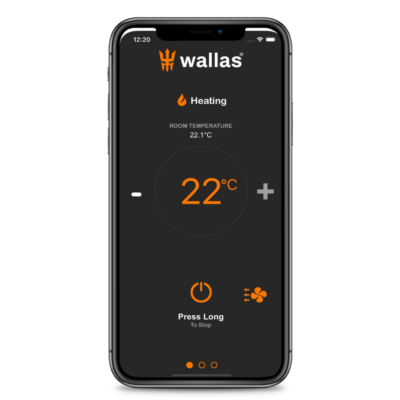

Wallas app

Wallas Remote App for Remote Access

Turn your heater on remotely with the Wallas Remote App and enjoy warm water and a warm cottage upon arrival.

Monitor indoor temperature and battery voltage remotely from home to be better prepared for the day.

Adjust temperature locally with your phone without having to reach to the control panel.

Keep your heater always updated with the latest features.

The Greenboost burner burns renewable fossil-free diesel cleanly and energy-efficiently.

Combustion air is pulled in from the outside and exhaust gas is safely vented  outside keeping the indoor air clean and odorless.

Fully enclosed laminar burning process warms up and dries the indoor air with no exposed flame.

Unit can be used to power up a water boiler, underfloor heating, or radiators.

Brushless blower motors have a very long life-cycle, supporting reliably long service intervals.

Durable Finnish design and manufacturing keep your heater intact for years.

Low temperature on unit and for everyone’ safety.

12 V battery is easy to recharge with a small solar panel.

Alternatively, the unit can be used in 110V/230V network with a 12 V converter.

Advanced Control Panel enables intelligent temperature control.

Wallas app heater control works locally at the cottage with no Wifi by using short-distance wireless connection.

Heater can be accessed from any location through a WiFi modem with the Wallas App.

Remote accessibility enables system updates and diagnostics.

TECHNICAL SPECIFICATIONS

Fuel: Diesel, HVO renewable diesel
Power: 1600-4000 W (5,400-13,600 BTU)
Operating Voltage: 12 V
Fuel Consumption: 0,16-0,40 l/h (5.4-13.5 oz/h)
Electricity Consumption: 0,2-0,4A
EU Energy efficiency index: A+
Length: 478 mm (18 13/16″)
Width: 305 mm (12 1/64″)
Height: 740 mm (29 9/64″)
Weight: 25 kg (55 lbs.)
Colors: Graphite gray, winter white

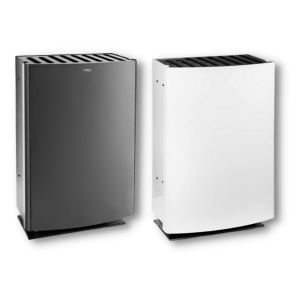

Choose from two beautiful colors: graphite gray or winter white

RECOMMENDED BUILDS

Area: 60-90 m² (645-970 ft²)

Floating houses, tiny houses, container houses, cottages, houseboats

STANDARD PACKAGE CONTENT

Heater without the front panel (to be chosen separately)
Advanced Control Panel, wire 5 m (16 ft)
Power cable with connector and integrated fuse 4 m (13 ft)
Fuel line 4 m (13 ft)
Separate tank feed
Accessory bag including essential clamps and screws

MATERIALS

Stainless Steel, High-Grade Aluminum, Other Corrosion-Resistant Materials

Technical values are measured in a reference measurement wall, which is constructed to represent a typical cottage installation.  The figures allow for 10 % reserve – yours may vary.

Wallas heaters and stoves are designed to run with standard road and boat diesel, as well as renewable fossil free diesel. Check with your distributor for further details on best options for your needs.
