Waste Gauge and Sender

Waste Gauge and Sender

The heart of our new range of Tank Level Gauges is a stainless steel industrial-grade pressure transducer. The stainless steel diaphragm ensures that no fluids come into contact with the sensing element ensuring maximum reliability. This transducer is packaged in various forms of the housing making sure that there is a system to suit your application. The result of the measurement of the fluid level is, first of all, averaged over a period of time and then displayed on our new illuminated graphics gauge.

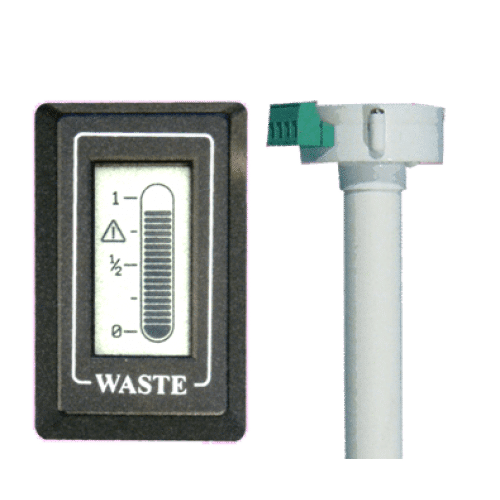

The gauge features a twenty-segment display with backlighting to ensure clarity even in dark corners, plus a warning triangle that flashes as tank contents approach critical levels.

This package is a plastic probe. This is suitable for use in freshwater and black and grey holding tanks. Units are made and calibrated to measure and there is a choice of a ¾” BSP brass compression fitting or in the event of there being no female bush fitted to the tank we can supply a rubber bung to make the seal. These units are NOT suitable for fuel. 65mm is required over the tank bush if using the ¾” BSP fitting or 40mm if using the rubber bung.

This new unit is available with our current range of gauges designed for the inland waterways market and our newly launched Offshore range recommended for all seagoing craft.

Available with either a 3/4” BSP thread or a rubber bung for installing into a tank. This sensor is installed into the top of the tank with a drop pipe, so please include the height of your tank when you order. If you require a 3/4” BSP then we also need to know the height of the socket also.

When placing your order you MUST provide a dimensional drawing of your tank so that the unit can be made accordingly.
